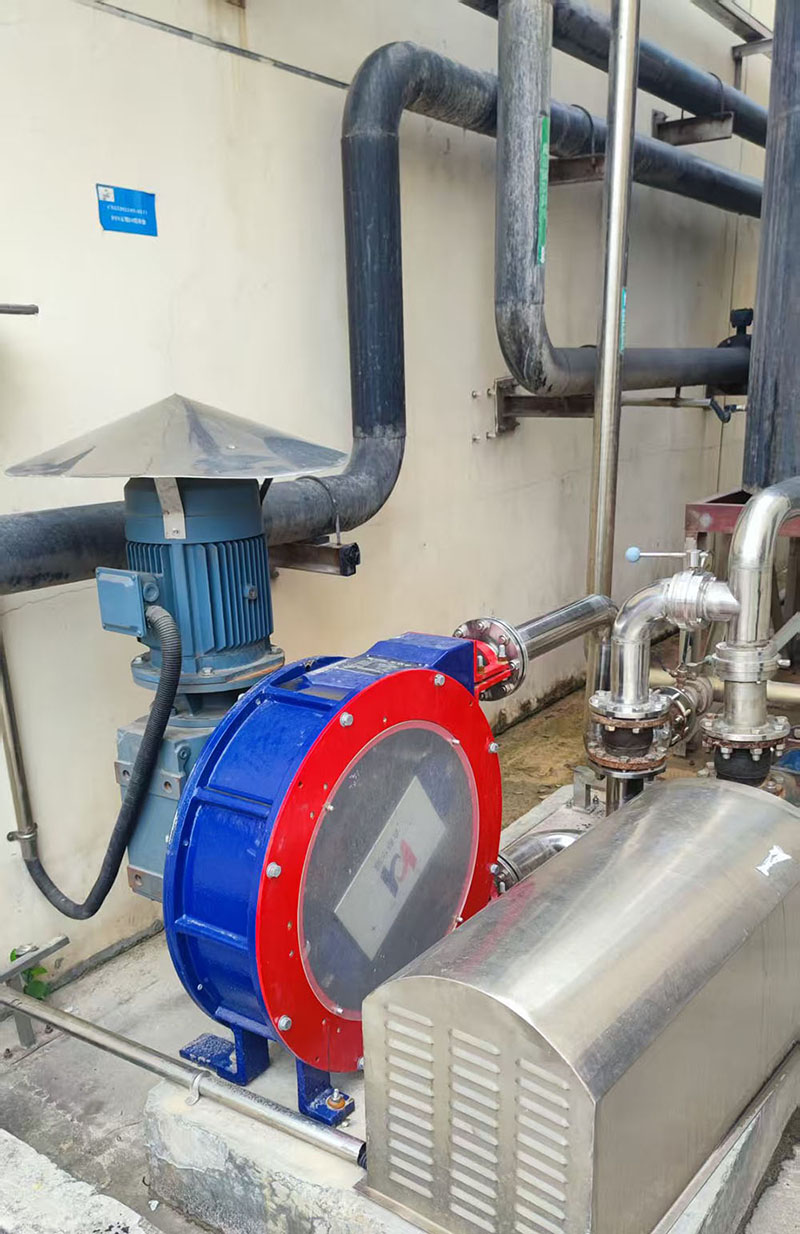

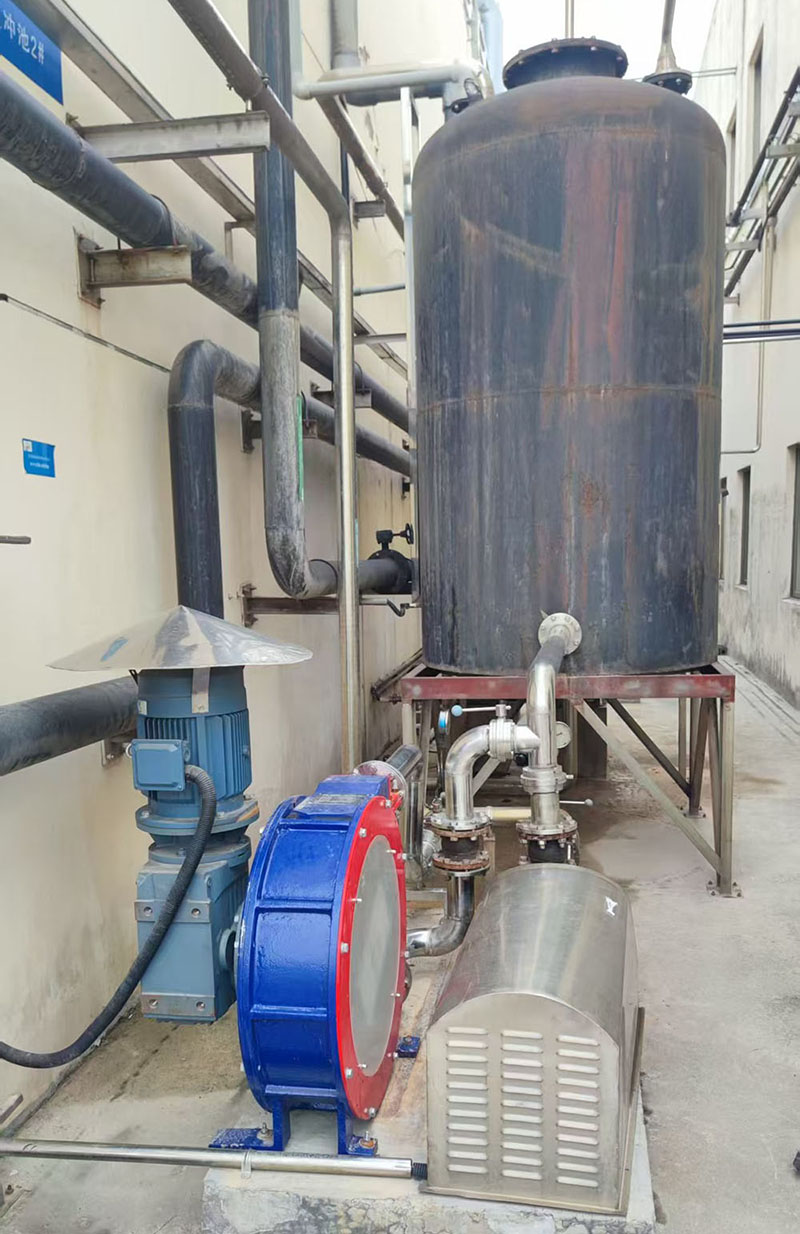

Hefei Huayun IHP-D type ultra-large flow, intelligent hose pump material conveying system consists of one or multi-component split pumps body, a high-efficiency and energy-saving motor, a reduction unit, an intelligent control module, etc. The system has no sealing structure,low energy consumption, high degree of automation. It is very suitable for transporting high concentration, high particle size, abrasive and corrosive fluids. Effectively solve a series of technical problems such as low flow rate of hose pump, inconvenience of replacing hose, and difficulty in pressure adjustment. It has 6 national invention patents and has an internationally leading technical level. Design a through shaft with double-end bearings, and assemble one or more sets of rotor components to squeeze large-diameter special hoses to achieve low-speed, large-flow transportation. The flow rate can reach 500-5000m3/h, and the pressure can reach 6Bar. The pump casing adopts a split patent design, and is matched with an electric cylinder to drive the upper pump casing to open or close, forcing the large-diameter hose to bend synchronously with the pump casing, allowing for convenient and efficient hose replacement, as well as assembly and other maintenance operations. The pressure roller bracket can freely adjust the expansion and contraction amount in the rotor slide rail to achieve the function of regulating pressure and flow. Anti-skid brake blocks and reinforced conjoined gaskets are installed in the rotor block and fixed with high-strength bolts to ensure that the pressure roller will not slide backward due to long-term operation which will causes the pressure and flow rate decrease. An intelligent control system is integrated PLC, frequency converter, touch screen, pressure sensor and other modules to monitor the system's flow, inlet and outlet pressure, speed, current, voltage, leakage monitoring, service life and other parameters in real time. Hefei Huayun IHP-D type ultra-large flow, intelligent hose pump material conveying system is the preferred solution to replace medium and low pressure pumps such as slurry pumps and impurity pumps. Say goodbye to series of problems such as:the high replacement cost, short service life and easy wear of slurry pump accessories etc. Mainly applicable to: mining, power plants, sewage treatment, metallurgy, petroleum, chemical industry, building materials and other industries. It is an ideal intelligent update and energy-saving product. Serve the world with quality and creates a century-old Huayun! If you want to find videos related to Huayun brand and peristaltic hose pump. For more information visit: https:// www.hospump.com ; 1、Peristaltic Hose Pumps working|Industrial squeeze hose pumps conveying kelp experiment video https://youtu.be/aqKk87rztFs 2、Peristaltic Hose Pump working| Industrial Squeeze Hose Pump for Krill Pump Live Animal Transfer https://youtu.be/jc3knFfIvpQ #pump #manufacturing #performance #innovation
